Hengke Casting Custom Investment Castings

Hengke Casting supports custom investment casting projects for aerospace brackets, housings, fittings and other specified alloy components. Our aero space casting focus connects product selection with practical sourcing requirements. Review alloy grades, drawing revisions, machining allowances and inspection needs before selecting a production route. Stainless steel, carbon steel and specified alloys should be matched to the operating environment.

Work with Hengke Casting to define the details that matter for your casting order. Share component drawings, expected quantities, surface requirements and delivery expectations. Discuss tooling, sample approval, dimensional checks and material documentation together. A clear technical specification helps buyers compare quotations consistently and gives repeat orders an agreed reference for manufacturing and inspection.

Hengke Metal Factory Tour

Our team are 7/24 support your Enquiry.

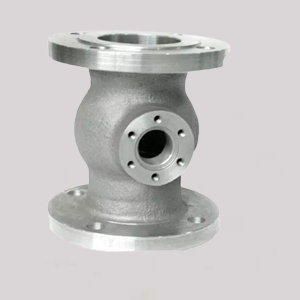

Marine Hardware manufacturer

Hengke Metal

Factory

Contact Now
Construction Hardware

Hengke Metal

Factory

Contact Now
Pump Parts

Hengke Metal

Factory

Contact Now
Marine Hardware manufacturer

Hengke Metal

Factory

Contact Now
Construction Hardware

Hengke Metal

Factory

Contact Now
Pump Parts

Hengke Metal

Factory

Contact Now
Marine Hardware manufacturer

Hengke Metal

Factory

Contact Now
Construction Hardware

Hengke Metal

Factory

Contact Now
Pump Parts

Hengke Metal

Factory

Contact Now

Company News and Blogs

17-4 PH Investment Casting: Specify the Condition, Not Just the Alloy Name

The name 17-4 PH identifies a precipitation-hardening stainless family, but it does not fully specify a casting order. The applicable cast grade, heat-treatment condition and required properties must be defined together. Leaving those details implicit can produce quotations for components that share a familiar name but differ in their supply obligations.

Investment Casting for Automotive Brackets: Design the Interfaces First

An automotive bracket connects components, carries loads and maintains alignment within limited space. Its casting route should be developed around those duties. Investment casting can be evaluated for complex bracket geometry, but successful production depends on more than reproducing the outer shape.

Investment Casting vs Metal 3D Printing: Prototype Freedom and Production Evidence

Metal 3D printing can produce a component directly from a digital build, while investment casting creates the metal shape through a mold. Both can support complex geometry. Their value depends on the production objective and the operations required after the primary shape is made.

Investment Casting vs Centrifugal Casting for Rings and Sleeves

A ring-shaped component may look like an obvious centrifugal casting candidate until mounting lugs, local passages or nonuniform sections are considered. Investment casting offers a different way to create such features. The comparison should follow the complete finished component, not just its cylindrical starting outline.

Investment Casting vs Metal Injection Molding for Small Complex Components

Small complex metal parts can be candidates for investment casting or metal injection molding, but the production routes are fundamentally different. Investment casting fills a refractory mold with molten metal. MIM shapes a powder-and-binder feedstock, removes binder and sinters the component. Comparing them requires more than matching the final outline.

Contact our Support Team

Investment Casting Process at Hengke Casting

1

Drawing Review and Casting Requirements

Hengke Casting reviews drawings, alloy specifications, order quantities and inspection requirements before tooling. Confirm critical features, machining allowances and acceptance criteria for the intended casting application.

2

Tooling Design and Wax Pattern Planning

Hengke Casting coordinates tooling requirements with the approved component drawing. Pattern dimensions, shrinkage allowances and injection features are reviewed before preparing wax samples for evaluation.

3

Wax Pattern Injection and Inspection

Hengke Casting checks wax patterns for complete filling, surface defects and dimensional consistency. Approved patterns provide the component shapes used to build the investment casting assembly.

4

Wax Tree Assembly and Gating Review

Hengke Casting groups wax patterns around a gating system suited to the casting geometry. Assembly checks help maintain spacing and access for consistent ceramic shell coverage.

5

Ceramic Shell Building and Drying

Hengke Casting plans repeated slurry coating, stucco application and controlled drying around the wax assembly. Shell preparation must suit the selected alloy, component dimensions and pouring requirements.

6

Dewaxing and Ceramic Shell Preparation

Hengke Casting coordinates wax removal and shell preparation before pouring. Inspect the ceramic mold for damage and complete the specified heating cycle for the planned casting process.

7

Alloy Melting and Controlled Pouring

Hengke Casting reviews alloy identification and melting requirements before metal enters the prepared shell. Pouring conditions are specified to suit component geometry and the selected material grade.

8

Shell Removal and Casting Separation

Hengke Casting plans ceramic removal and separation of individual castings from the gating system after cooling. Cleaning methods should protect critical surfaces and leave suitable finishing allowances.

9

Heat Treatment and Surface Finishing

Hengke Casting specifies heat treatment and finishing according to the approved material and drawing requirements. Required properties, surface condition and dimensional effects should be reviewed before processing.

10

Precision Machining of Critical Features

Hengke Casting coordinates machining of designated holes, threads, sealing faces and locating features. Use the approved drawing revision to check tolerances and protect surfaces needed for assembly.

11

Dimensional and Material Inspection

Hengke Casting reviews dimensional results and specified material documentation before acceptance. Additional testing is agreed according to application requirements, with discrepancies addressed before cast components are released.

12

Final Review and Protective Packaging

Hengke Casting checks order identification, quantities and agreed inspection records before packing. Suitable protection, labeling and handling instructions help prepare finished cast components for transport and receipt.

Why Choose Hengke Casting for Castings?

  • Custom Investment Casting Solutions
  • Drawing and Material Review
  • Sampling Plans for Your Components
  • Precision Castings for Industrial Applications
  • Support for Repeat Casting Orders
